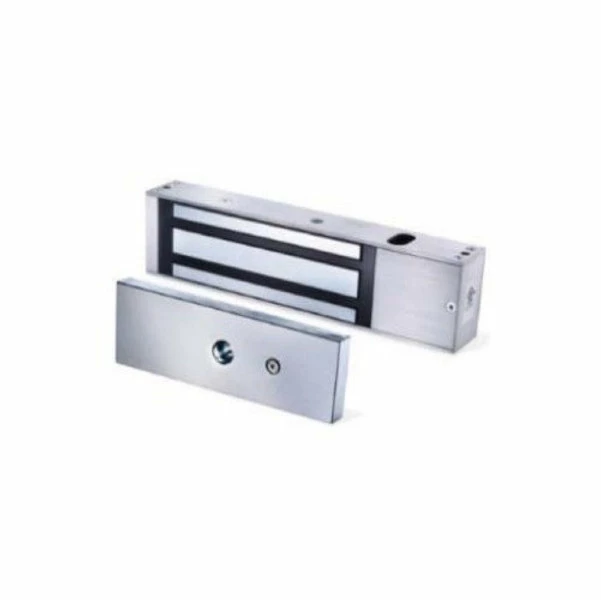

Zanda – Electromagnetic MagLock (550kg Holding Force)

Features:

• Up to 550kg holding force
• Monitored – door & lock status sensor
• Configurable large red/green LED indicator 37x15mm
• Optional relock time delay
• Anti tamper adjustable mounting plate for easy installation
• Reversible for left or right handed doors
• Aluminium anodized casing
• Dual Voltage – 12/24 VDC field selectable
• Holding Strength: 680kg
• Approvals CE tick, ROHS Compliant
• Dimensions:
  • Magnet – 267mm Length x 68mm Height x 40mm Depth
  • Armature Plate incl. surround – 214.7mm Length x 67mm Height x 20mm Depth
  • Mounting Plate – 267mm Length x 8mm Height x 40mm Depth
