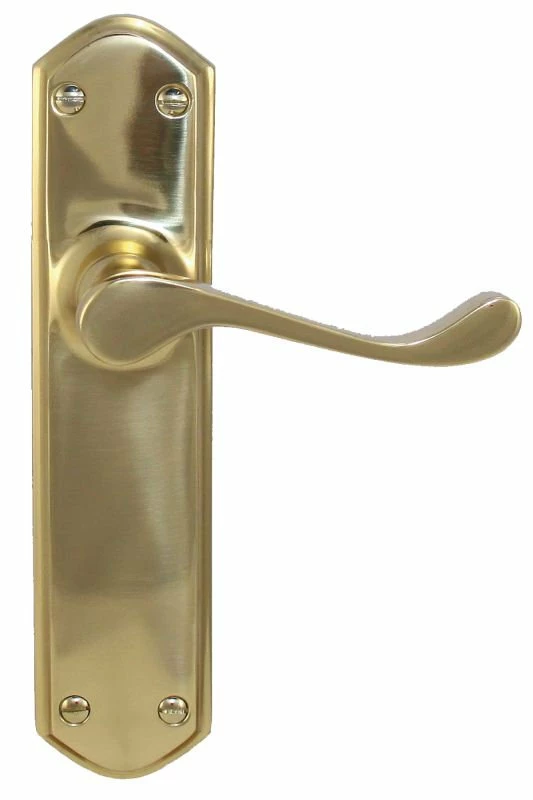

Superior Brass – Victorian Door Lever On 230mm Grandeur Backplate – All Variants

With a patented stainless steel ball bearing mechanism for a very smooth lever action, and a 15 year mechanical warranty for your peace of mind. This item can be purchased in kit format, which includes all components required for your door to function.

Sizing:

• Height: 230mm
• Width: 48mm
• Projection: 56mm



Unit: Pair/Set (2 handles for both sides of 1 door)



Material: Solid Brass



Fire Rating: 4 Hours



Brand: Superior Brass

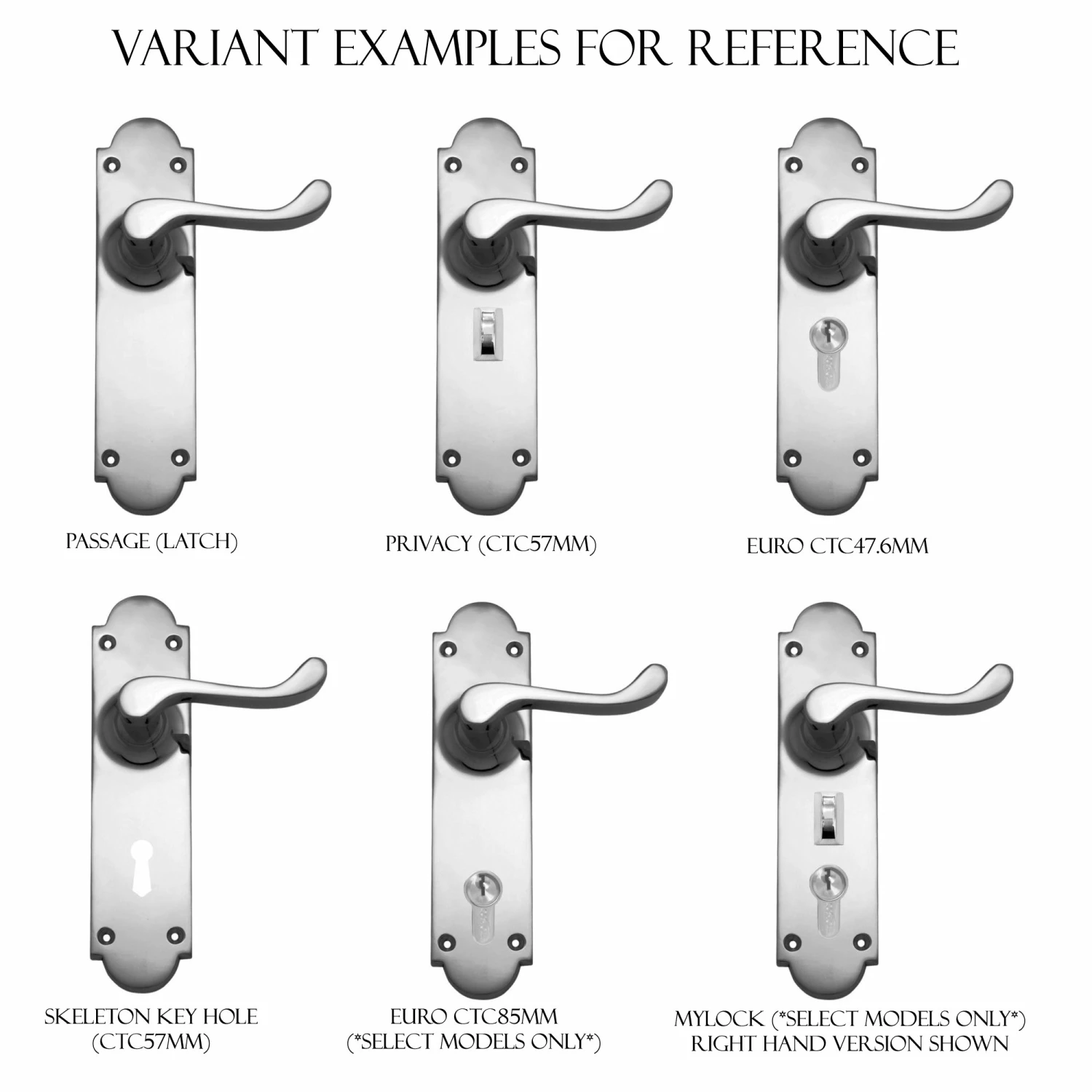

Each kit comes complete with all necessary hardware for functionality in your desired function and matching chosen finish:



• Passage (Latch) Set Only: for internal non-locking doors – no latch supplied.



• Passage (Latch) Kit Complete: for internal non-locking doors – comes complete with a 60mm backset tube latch.



• Privacy Set Only: for internal doors where privacy is needed – comes with a privacy turn & snib + 57mm privacy centre-to-centre cutout – no privacy lock supplied.



• Privacy Kit Complete: for internal doors where privacy is needed – comes complete with a privacy turn & snib + 57mm centre-to-centre privacy cutout, and a 60mm backset privacy mortice lock.



• Euro CTC47.6mm Set Only (Modern Entrance): for external doors that need high security locks – comes with a 47.6mm centre-to-centre euro cylinder cutout – no lock or cylinder supplied.



• Euro CTC47.6mm Kit Complete – Key/Turnthumb Cylinder (Modern Entrance): for external doors that need high security locks – comes complete with a 47.6mm centre-to-centre euro cylinder cutout, high security 47.6mm centre-to-centre euro mortice lock (60mm backset) and a 65mm length key/turnthumb 5 pin euro cylinder with 2 keys.



• Euro CTC47.6mm Kit Complete – Key/Key Cylinder (Modern Entrance): for external doors that need high security locks – comes complete with an 47.6mm centre-to-centre euro cylinder cutout, high security 47.6mm centre-to-centre euro mortice lock (60mm backset) and a 65mm length dual function 5 pin key/key euro cylinder with 2 keys.



• Skeleton Key Hole Set Only (Traditional Entrance): for external doors that need security locks – comes with a 57mm centre-to-centre skeleton key cutout – no lock supplied.



• Skeleton Key Hole Kit Complete (Traditional Entrance): for external doors that need security locks – comes complete with a 57mm centre-to-centre skeleton key cutout, and security 57mm centre-to-centre 3 lever mortice lock (60mm backset) with 2 keys.



• Euro CTC85mm Set Only (Modern Entrance): for external doors that need high security locks – comes with a 85mm centre-to-centre euro cylinder cutout – no lock or cylinder supplied.



• Euro CTC85mm Kit Complete – Key/Turnthumb Cylinder (Modern Entrance): for external doors that need high security locks – comes complete with a 85mm centre-to-centre euro cylinder cutout, high security 85mm centre-to-centre euro mortice lock (60mm backset) and a 65mm length key/turnthumb 5 pin euro cylinder with 2 keys.



• Euro CTC85mm Kit Complete – Key/Key Cylinder (Modern Entrance): for external doors that need high security locks – comes complete with an 85mm centre-to-centre euro cylinder cutout, high security 85mm centre-to-centre euro mortice lock (60mm backset) and a 65mm length dual function 5 pin key/key euro cylinder with 2 keys.

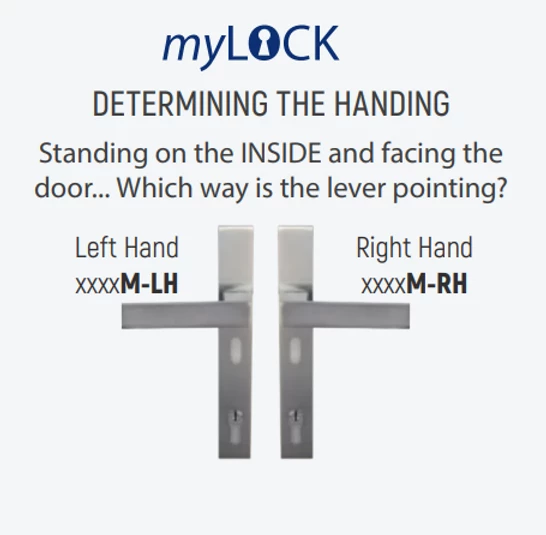

• myLOCK Entrance Set Only: for external doors that need high security locks with the option to privacy lock whilst at home and also still having the full key/key deadlock ability – comes with an 85mm centre-to-centre euro cylinder cutout, and a privacy snib on the inside – no actual myLOCK lock or cylinder supplied. **Comes as either Left or Right Handed, please specify in the checkout, refer images for handing.**



• myLOCK Entrance Kit Complete: for external doors that need high security locks with the option to privacy lock whilst at home and also still having the full key/key deadlock ability – comes complete with an 85mm centre-to-centre euro cylinder cutout, privacy snib on the inside, high security 85mm centre-to-centre myLOCK euro + privacy mortice lock (60mm backset) and a 65mm length dual function 5 pin key/key euro cylinder with 2 keys. **Comes as either Left or Right Handed, please specify in the checkout, refer images for handing.**



Other Important Notes:

• Backset measurements are 60mm for all kits (standard in Australia), please specify in the checkout if a 45mm backset measurement is required instead.
• All kits will only work for single doors or non-rebated double doors – if you have rebated double doors, please contact us to ensure supply of the required additional parts needed.
• For Euro, Skeleton Key Hole & myLOCK kits, we have your locks keyed alike by default for multiple quantities. If you would prefer your kits keyed to differ from one another (e.g. for a separate granny flat or such), please specify in the checkout.



Extra Note: PVD Anti-Tarnish Polished Brass finish will come with regular Polished Brass accessories as not all accompanying locks & latches are available in the PVD finish.
